Empty box for TQ

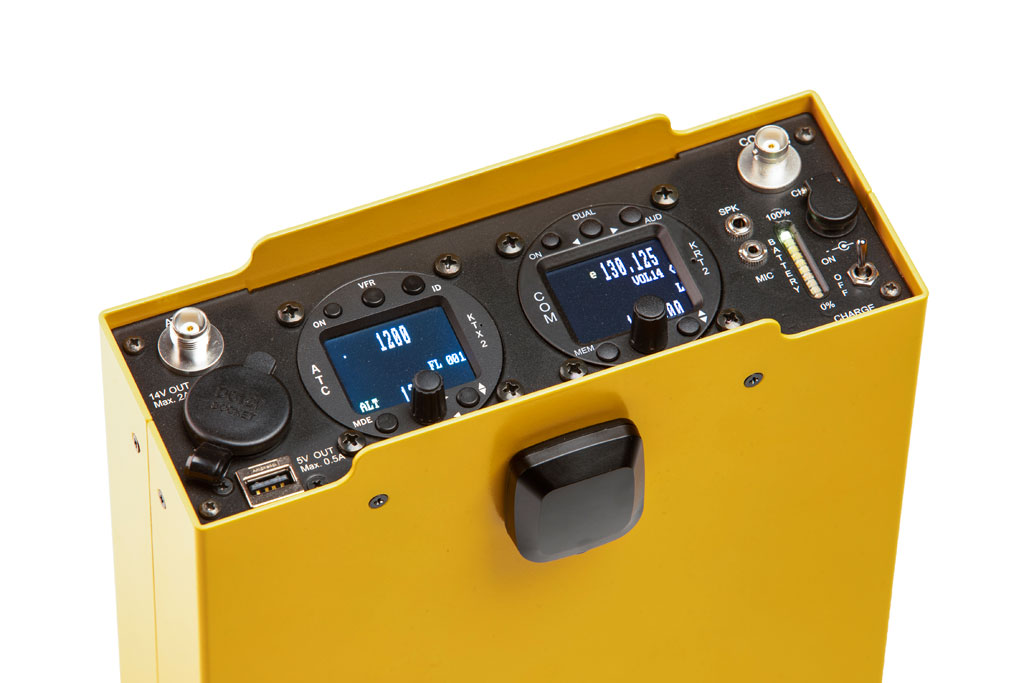

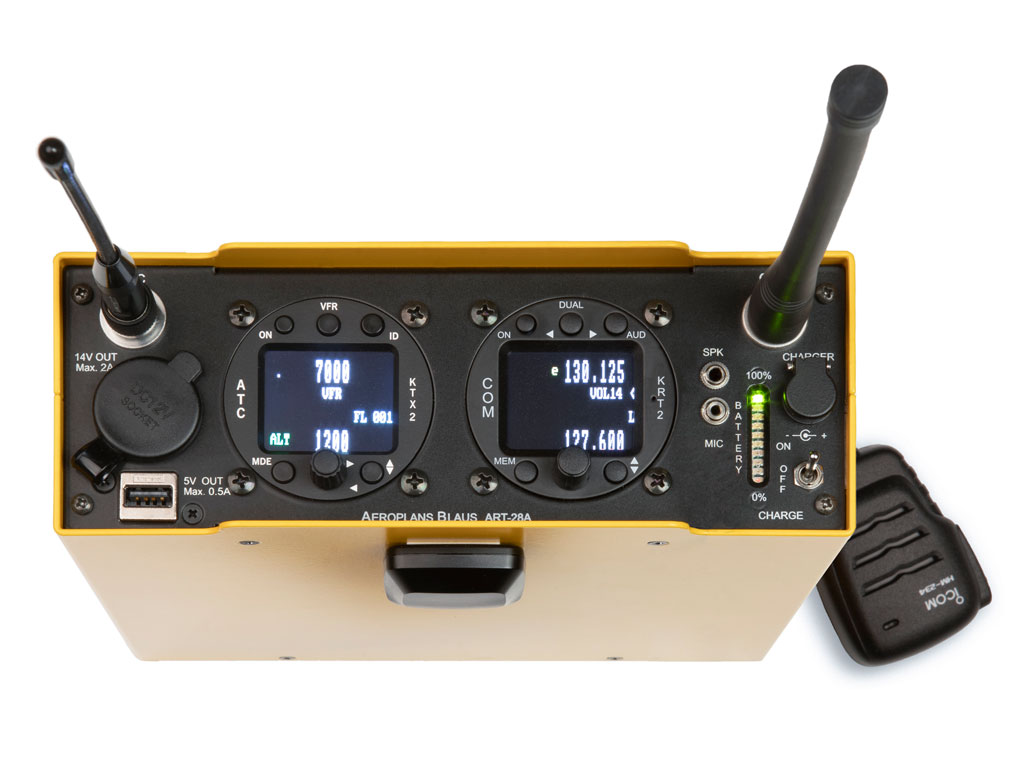

This state-of-the-art portable radio has been specially designed for use in balloons. The station has a modular design so that it can adapt to the needs of each customer. It is fitted with a high class transponder and VHF radio.

Based on the chosen set up, the unit is plug-and-play ready for the TQ KRT2-S VHF radio and/or the TQ KTX2-S transponder. If the unit is wired for transponder, it will be fitted with an GPS receiver to supply data for the transponder and thus transmit Mode-S with ADS-B.

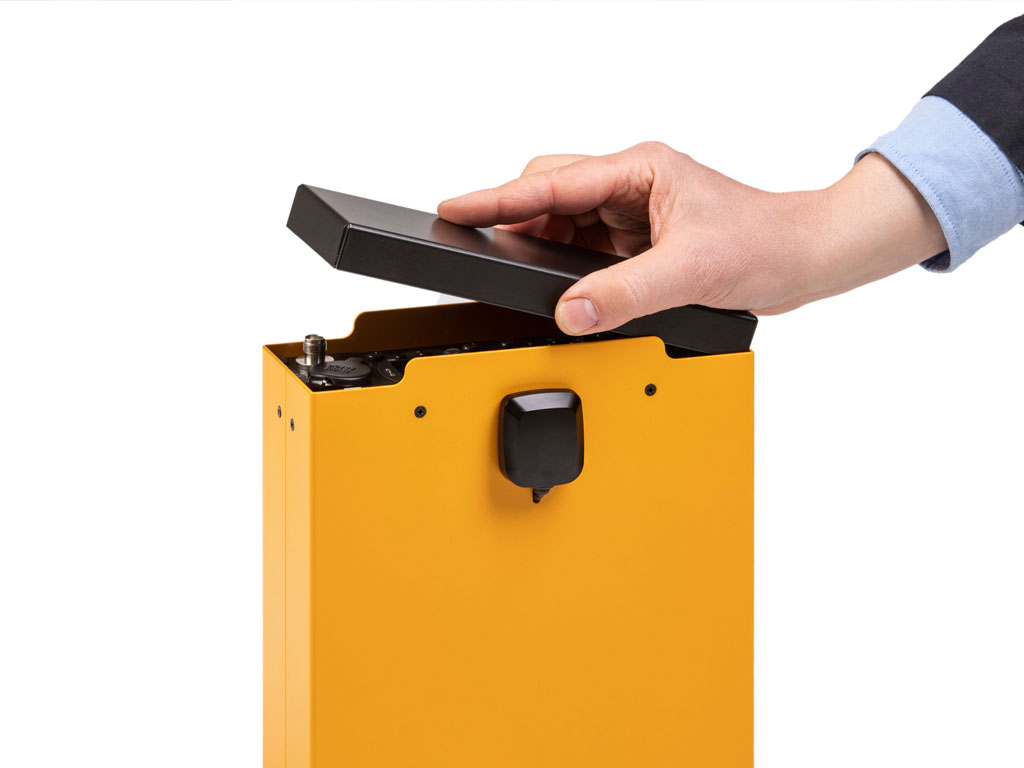

The base station is a portable aluminum reinforced case, designed to withstand a hard life. The raised top edge protects equipment and their controls, preventing them from breaking in a high wind landing. Inside we have a high capacity Lithium battery which provides sufficient autonomy for several flights and at the same time is extremely safe due to its internal battery protection and control circuit, preventing over / discharge and short circuit. The universal charger charges the battery when connected to the AC network and supports 100 to 240V AC 50-60Hz, so you can charge the battery in any country without having to worry about the voltage. A colored LED indicates the charge status of the battery. Further, a cigarette lighter with 14V output, USB output to charge external devices and on/off switch complete the box.

Weight Maximum configuration: 3.3 Kg
Dimensions: 217 x 80 x 265mm
Charging time: < 7h
Mains Input: 100 to 240V AC, 50-60Hz
Output cigarette plug: 14V, 2A max
Battery: Li-Io, 135Wh with BMC

For the best result, assembly should be done by our technicians. Please ask for more information about the process.

As these units are continuously improved based on valuable user feedback, the shown pictures might not represent the actual product.

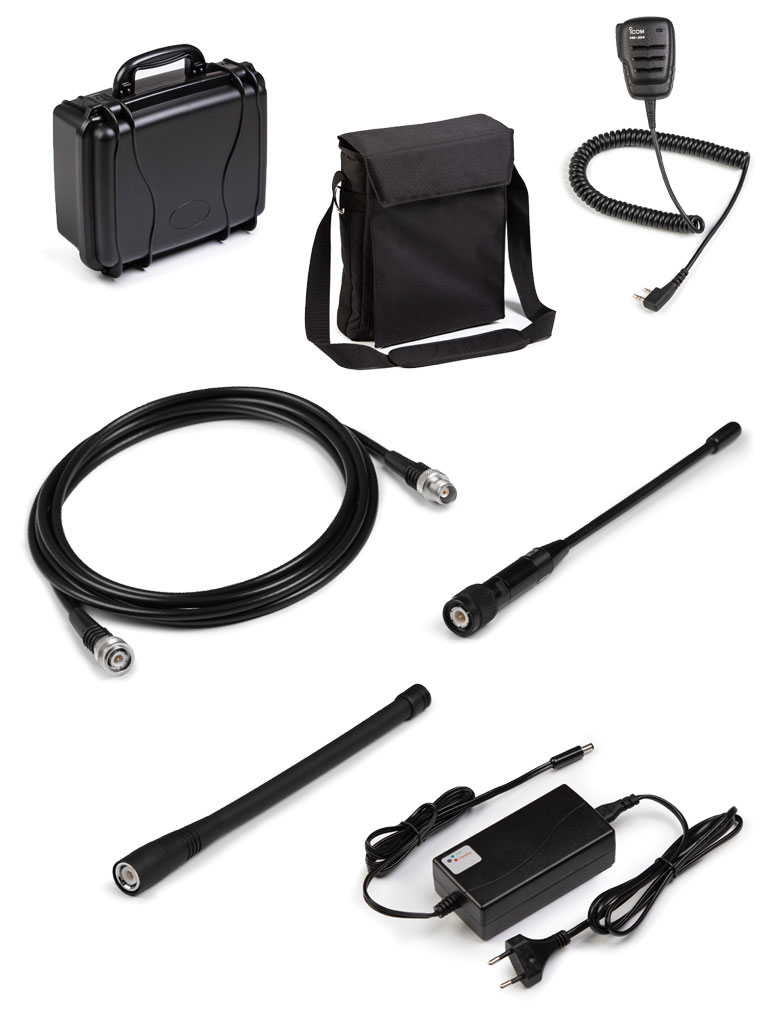

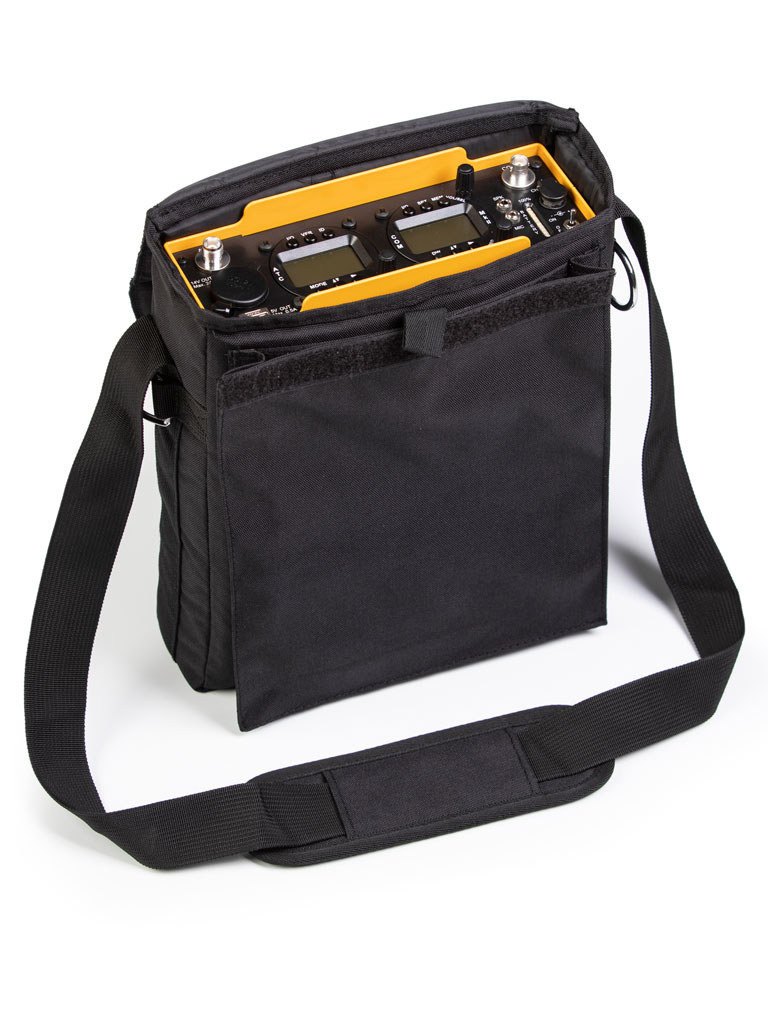

Included with this item - carrying bag
- protective carrying case
- battery
- charger (external)

if wired for transponder:
- GPS receiver for ADS-B
- transponder antenna
- coaxial extension cord

if wired for radio:
- rubber VHF antenna
- speaker mike

€ 1,574.21 incl 21% VAT[*]
€ 1,301.00 excl 21% VAT[*]

[*] VAT will be charged always - unless you are outside the European Union or a VAT registered company in any country of the European Union, except The Netherlands.
All shown prices are excluding shipping costs. Shipping costs will be quoted with the possibility to cancel your order. All orders should be paid in advance, before shipping. Payment can be done by IBAN bank transfer - other payment methods can be discussed. No refunds or cancellations possible for specially ordered items. Some, but not all items are available from stock. If not in stock, the delivery time depends on stock / availability at the manufacturer.
