This state-of-the-art portable radio has been specially designed for use in balloons. The station has a modular design so that it can adapt to the needs of each customer. It is fitted with a high class transponder and VHF radio.

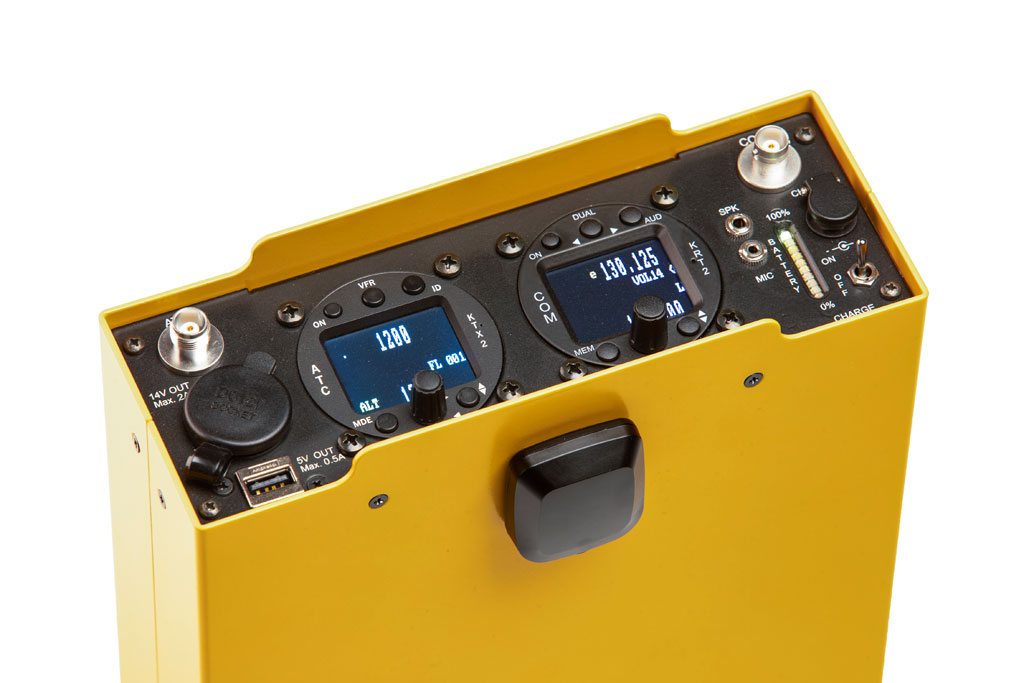

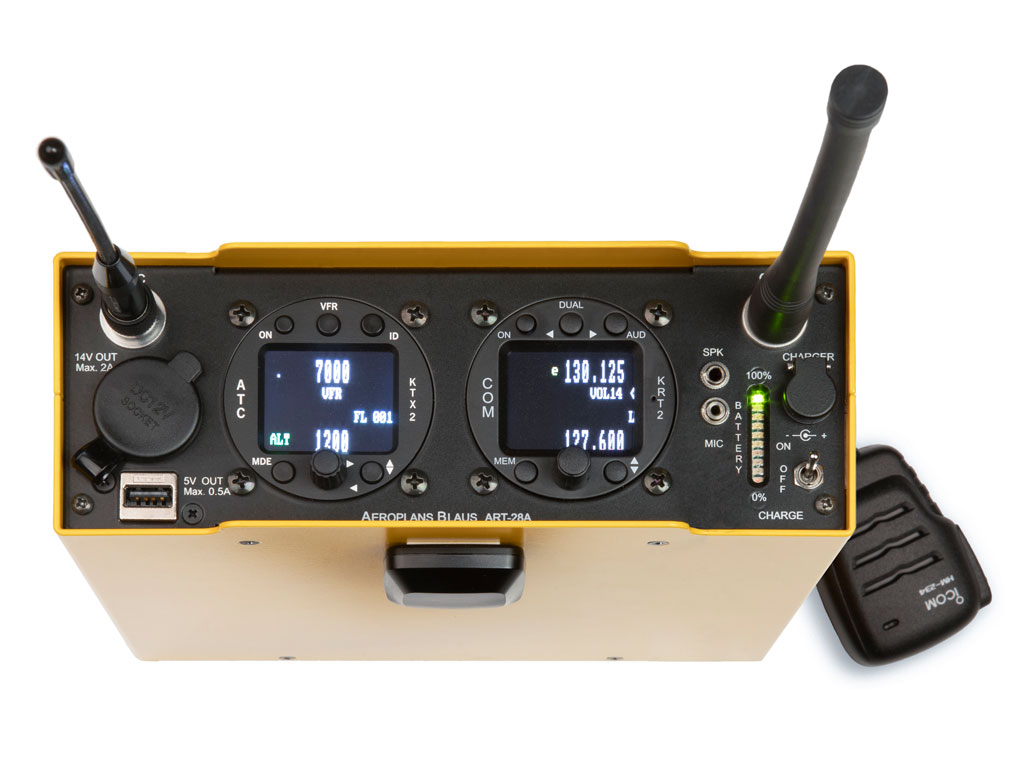

The radio is the TQ Avionics KRT2-S VHF radio certified with EASA Form 1 and has all the benefits that we may need (6W, dual watch, double channel spacing). The transponder is the TQ Avionics KTX2-S transponder, certified with EASA Form 1 with built-in altimeter, all-mode A, C and S with ADS-B. The unit is fitted with an GPS receiver to supply data for the transponder and thus transmit Mode-S with ADS-B.

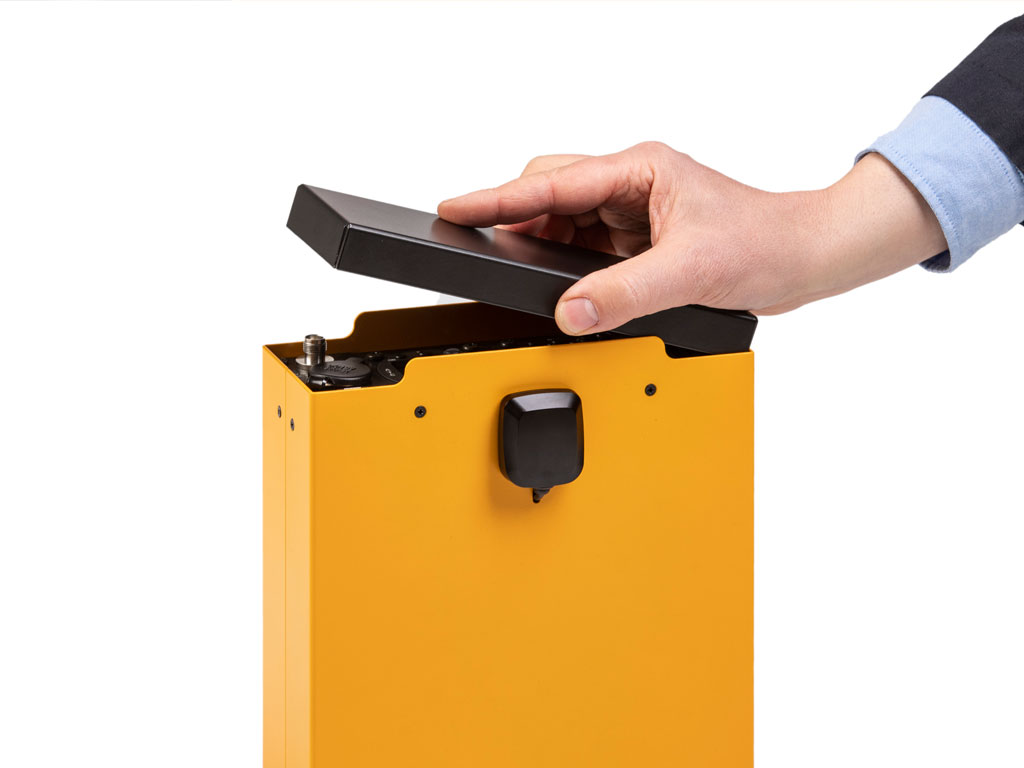

The base station is a portable aluminum reinforced case, designed to withstand a hard life. The raised top edge protects equipment and their controls, preventing them from breaking in a high wind landing. Inside we have a high capacity Lithium battery which provides sufficient autonomy for several flights and at the same time is extremely safe due to its internal battery protection and control circuit, preventing over / discharge and short circuit. The universal charger charges the battery when connected to the AC network and supports 100 to 240V AC 50-60Hz, so you can charge the battery in any country without having to worry about the voltage. A colored LED indicates the charge status of the battery. Further, a cigarette lighter with 14V output, USB output to charge external devices and on/off switch complete the box.

Weight Maximum configuration: 3.3 Kg
Dimensions: 217 x 80 x 265mm
Charging time: < 7h
Mains Input: 100 to 240V AC, 50-60Hz
Output cigarette plug: 14V, 2A max
Battery: Li-Io, 135Wh with BMC

As these units are continuously improved based on valuable user feedback, the shown pictures might not represent the actual product.

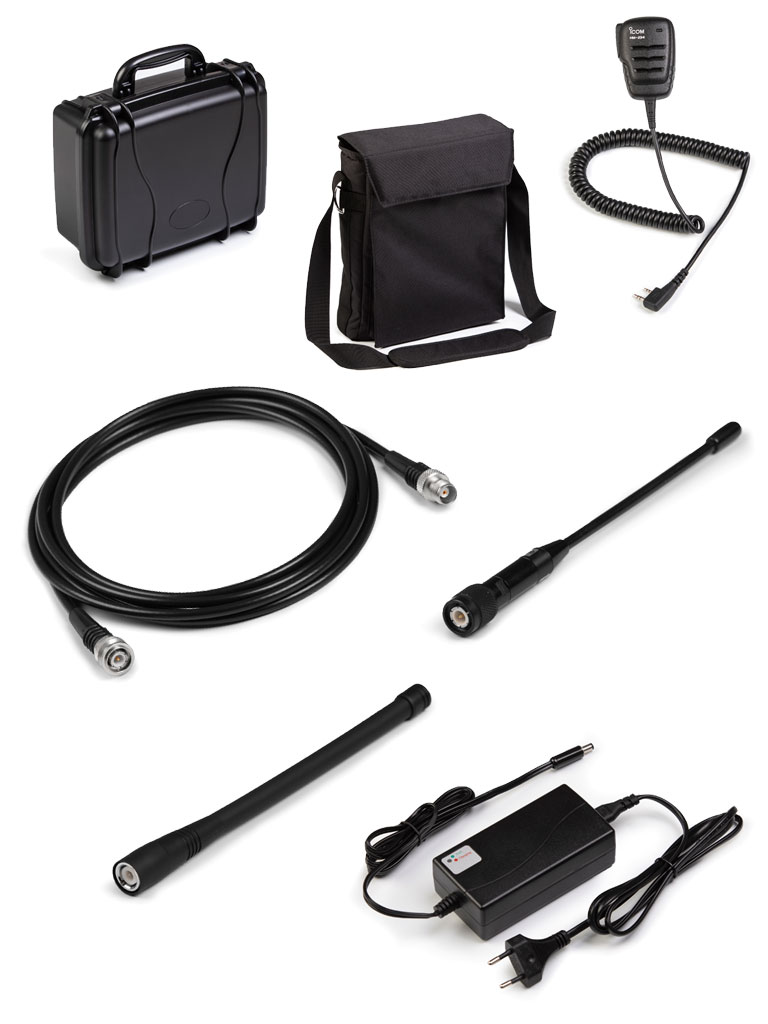

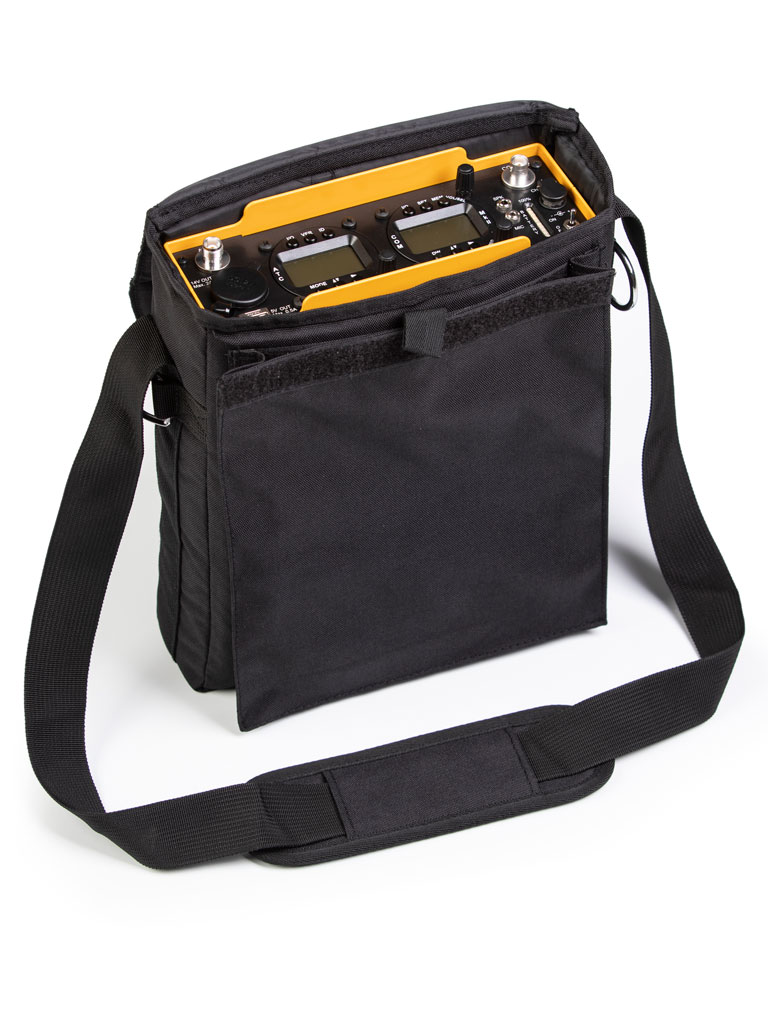

Included with this item - carrying bag
- protective carrying case
- battery
- charger (external)
- transponder antenna
- coaxial extension cord
- rubber VHF antenna
- speaker mike
